**G1/4 Nonslip Momentary Pneumatic Foot Pedal Valve - 5 Way 2 Position Air Switch for Industrial Machinery, Automation & DIY Projects** **Usage Scenarios:** Ideal for pneumatic systems, CNC machines, factory automation, and DIY air control applications.

Specification: Item Type: Foot Valve Switch Model: 4F210-08 Material: Aluminum alloy Type (Channel Position): Pilot type Working Temperature: Normal pressure Working Medium: Compressed air Maximum Working Pressure: 0.8Mpa Maximum Pressure Resistance: 1.0Mpa Port Size: G1/4 Specification: 5 way 2 position Application: Foot switches are widely used in medical equipment, stamping equipment, welding equipment, textile equipment, and printing machinery. Package List: 1 x Foot Valve Switch Note: 1. Before use, check the components to see if they are damaged during transportation, and then install and use. 2. Please pay attention to whether the gas flow direction and the connection pipe are correct when installing. 3. Pay attention to dust. When connecting the pipeline, the antidiarrheal tape should not be wrapped over the tooth end surface, and attention should be paid to eliminate the metal particles, dust and oil stains in the pipe joints and the pipe.

Easy to use- Use the foot pedal without the need to control the switch, both energy saving and environmentally friendly.

Application- The pedal air valve is ideal for controlling the spring or loaded backhaul cylinder, allowing pressurized stretching and exhaust retraction, or one-way pneumatic motor, only allowed in a single direction.

Aluminum alloy- The pneumatic pedal valve is made of aluminum alloy material, friction resistant, can be trampled for a long time without deformation.

5 way 2 position- Standard 5 way 2 position foot valve, standard tube thread, stable performance after installation. Oil port size G1 / 4.

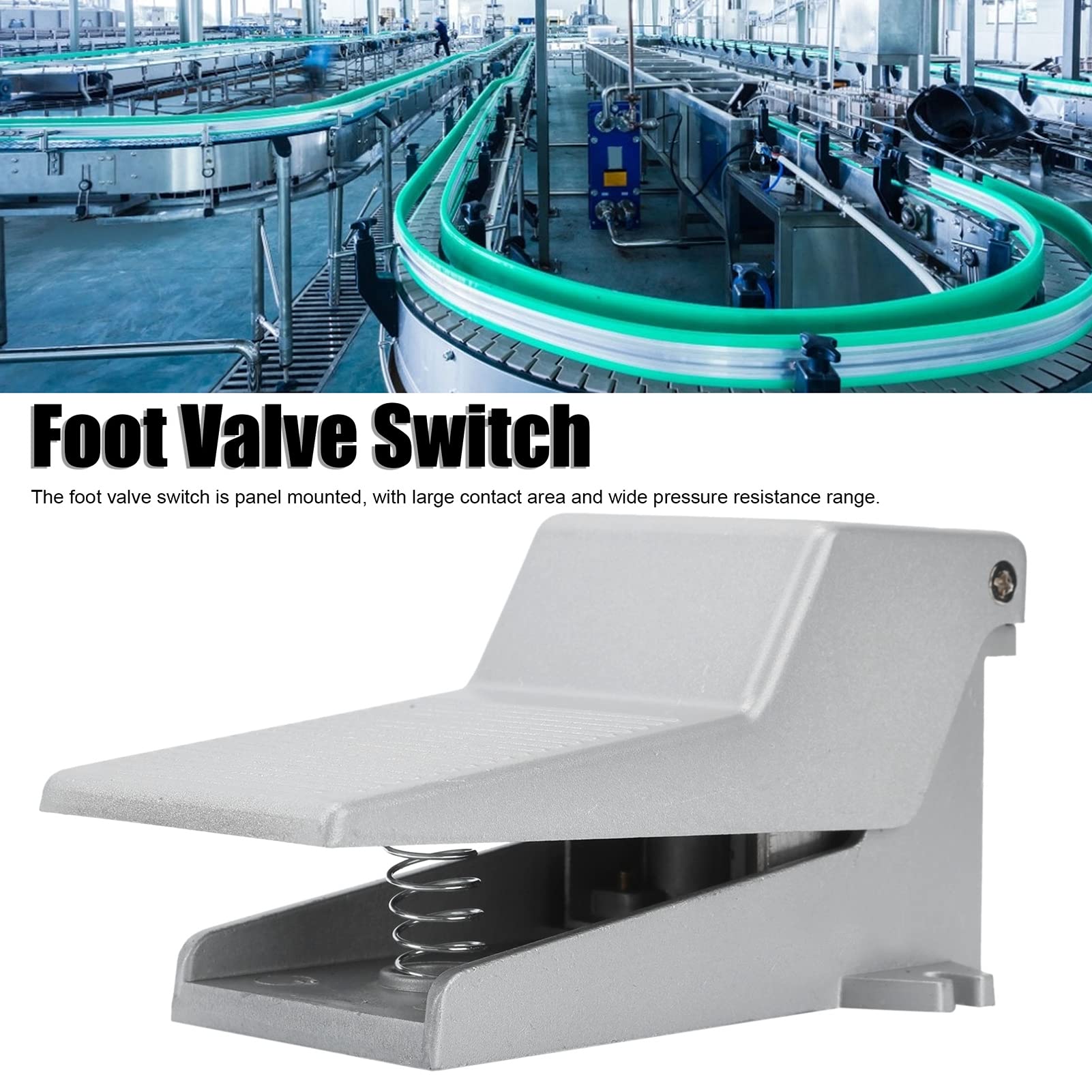

Panel installation- The pedal switch is mounted for the panel, the contact area is large, and the voltage range is wide. Please pay attention to the flow of the gas and the connection tube correct.
